steel strand

Classification :

JIS G3536:1×7-12.7mm/15.2mm; UNE 36094:1×7-9.3mm/13.0mm/15.2mm; KS D:1×7-9.5mm/11.1.0mm/12.7mm/15.2mm; AS/NZS4672:9.5mm(7 wire)/12.7nn/15.2mm;

+86 18365983556

E-mail

sales1@yaohaisteel.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Wire Rod

PRODUCT DETAILS

Our company can produce various models according to different standards of products, specifications are as follows:

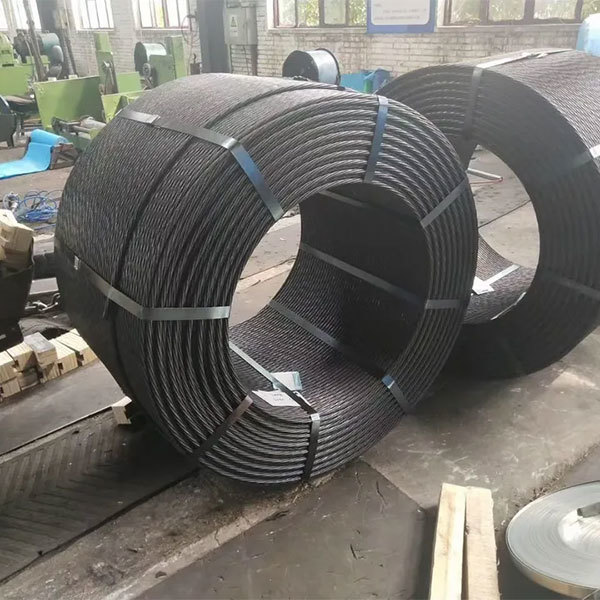

(1) Steel Strand for PC Concrete
GB/T5224:1×7-9.5mm/11.1mm/12.7mm/15.2mm/15.7mm/17.8mm/21.6mm;
ASTM416:1×7-7.9mm/9.53mm/11.11mm/12.7mm/13.2mm/14.29mm/15.24mm/17.8mm;
BS 5896:1×7-8.0mm/9.3mm/9.6mm/11.0mm/12.5mm/12.9mm/15.2mm/15.7mm;
JIS G3536:1×7-12.7mm/15.2mm;
UNE 36094:1×7-9.3mm/13.0mm/15.2mm;
KS D:1×7-9.5mm/11.1.0mm/12.7mm/15.2mm;
AS/NZS4672:9.5mm(7 wire)/12.7nn/15.2mm;
(2) Unbonded PC Strand
1x7-9.5mm/12.7mm/15.2mm/15.7mm.
(3) Prestressed Steel Wire
Plain steel wire for prestressed concrete/indented wire /spiral rib steel wire
3.0mm/4.0mm/4.8mm/5.0mm/6.0mm/6.25mm/7.0mm/8.0mm/9.0mm/10.0mm/12mm

Dia(mm)	Tensile Strength(Rm/MPa)	Max strength for whold wire(Fm/kN)	StipulatedNominal Non proportional extension rate(Fp0.2/kN)
12.7	≥1860	≥185.1	≥166
15.2	≥1860	≥262.5	≥235
17.8	≥1860	≥358	≥318

Dia(mm)	Cross section size(mm2)	Approximate weight(g/m)	Tolerance(mm)
12.7	98.7	775	+0.4~-0.2
15.2	150	1178	+0.4~-0.2
17.8	191	1500	+0.4~-0.2

Rebar refers to steel used for reinforced concrete and prestressed reinforced concrete. Its cross section is round, sometimes square with rounded corners. Including plain round reinforcement, ribbed reinforcement and twisted reinforcement.

Reinforcement for reinforced concrete refers to straight or coiled steel used for reinforcement of reinforced concrete. Its appearance is divided into smooth round reinforcement and deformed reinforcement, and the delivery status is straight bar and coiled round reinforcement.

PACKING AND DELIVERY

Packing and delivery

Our company currently has 12 product series, including low-alloy high-strength steel plates, alloy structural steel plates, more than 300 steel grades, and more than 400 thickness specifications of wide and thick steel plates. Among them, more than 180 varieties are produced in accordance with foreign standards. Our products are exported to more than 100 countries and regions around the world, including Europe, America, and Asia, and have been well received by domestic and foreign customers.

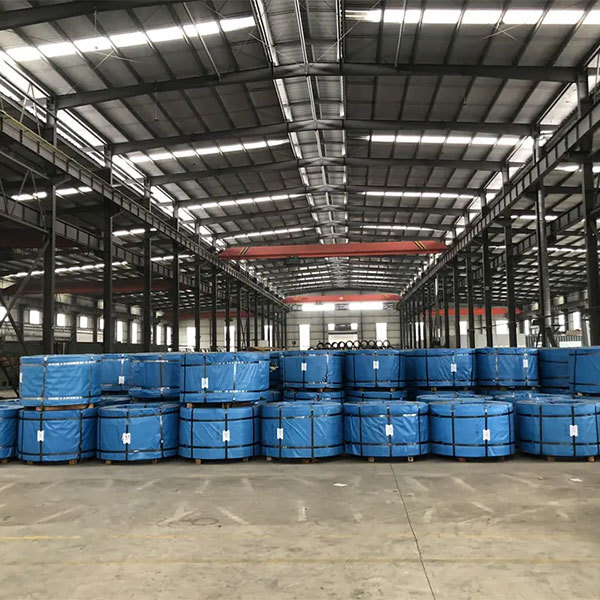

FACTORY APPEARANCE

The factory covers an area of 20,000 square meters and has 8 advanced fully automatic cold forming production lines, 6 hot rolling production lines, more than 20 feeders, 2 environmentally friendly hot-dip galvanizing production lines, and 2 oxygen-free annealing furnaces. It has invested in the construction of galvanized steel, color steel, seamless steel pipes, cold-rolled plates, stainless steel products and other production lines in China, with an annual production capacity of 400,000 tons.

APPLICATION AREAS

Every staff member of our company follows the principles of dedication, professionalism and integrity, focusing on the needs of our customers and making every effort to solve the problems raised by them. We firmly believe that quality is the basis for the survival of an enterprise, and our customer-oriented philosophy runs through every aspect of product design, manufacturing, sales and service.
